Working Principle

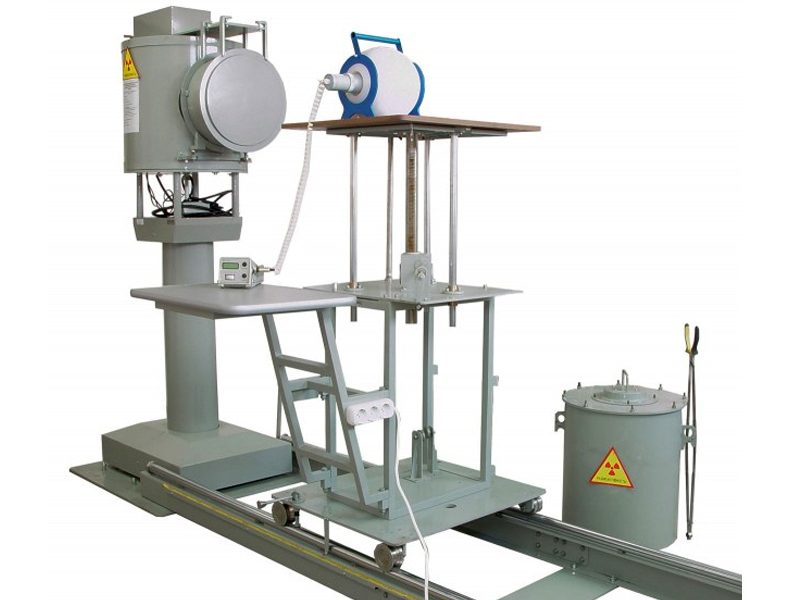

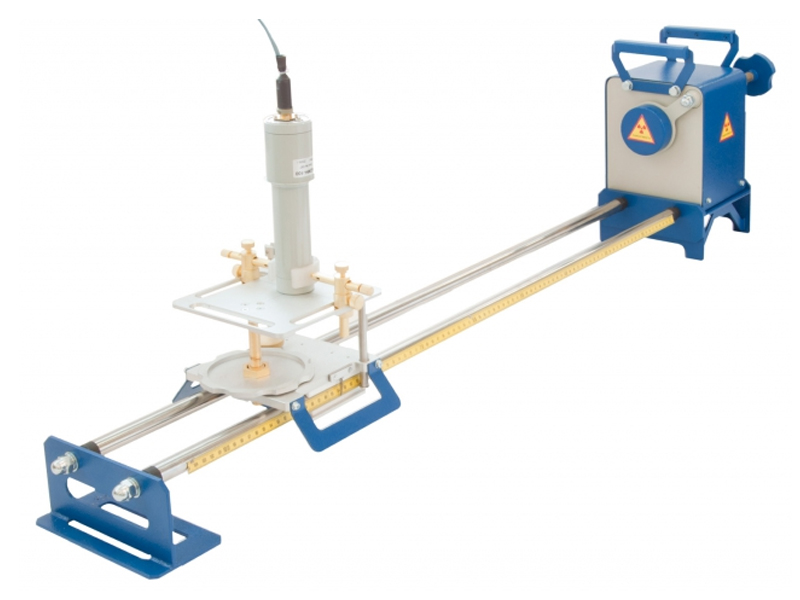

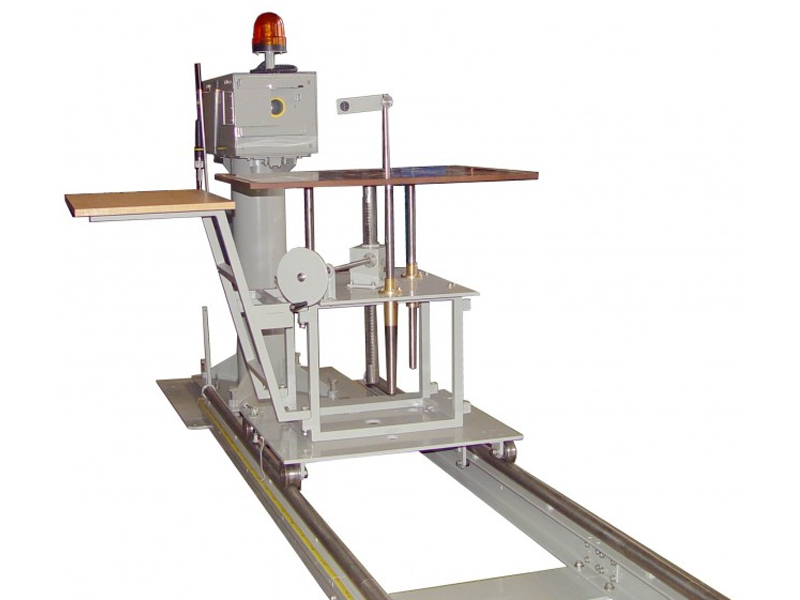

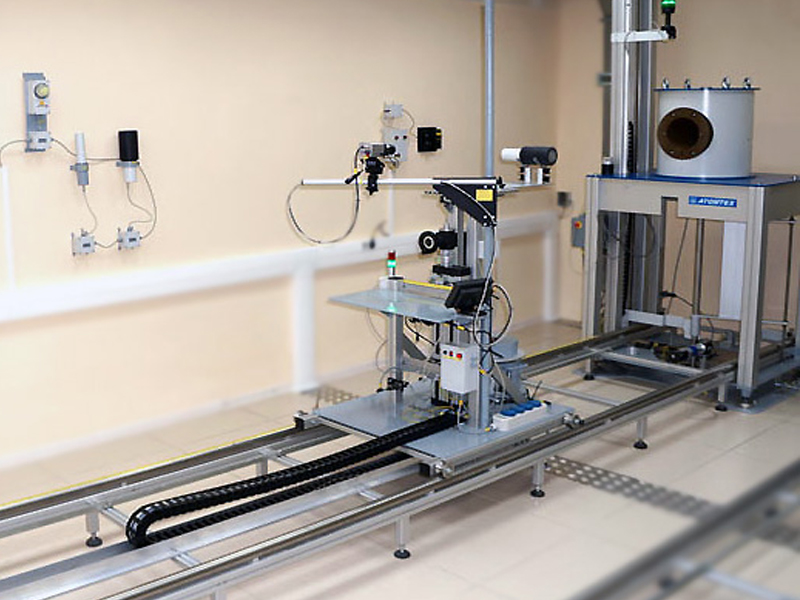

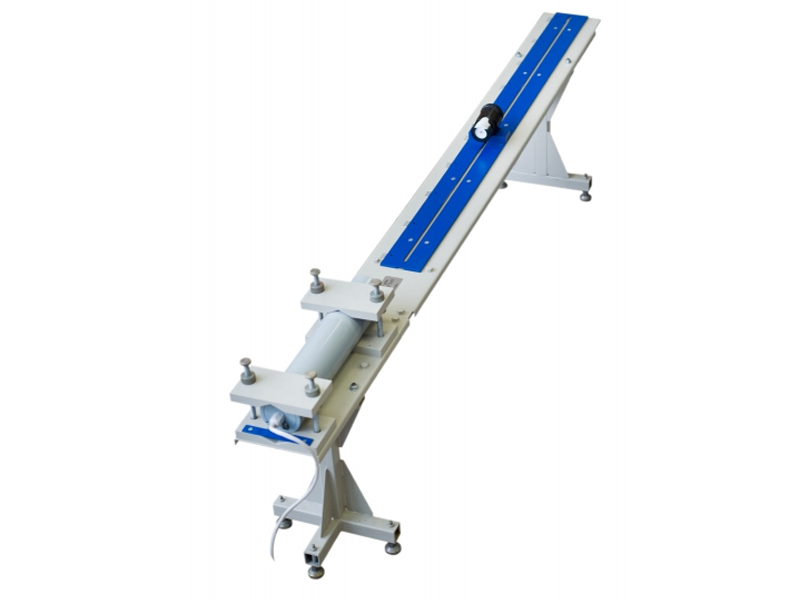

Laboratory operation is based on the use of 137 Cs radionuclide sources. Laboratory linear travel platform has fixed irradiator and calibration bench irradiation model. The range of gamma radiation dose rate values, different activities and "source-detector" distance change are obtained by using 137Cs sources. The "source-detector" distance or diameter of the field shape collimator channel can be changed. The teleporter internal source transfer and moving platform positioning functions are controlled automatically. The laboratory is operated remotely.
Scope of Use
Gamma dosimetry measurements metrology support
Metrology service facilities verification and calibration
Calibration procedures (SSDL) in the Secondary Standard dosimeter laboratory
Adjusting dosimeter equipment during probing, development and production
Features
Typical collimator unit according to GOST 8.087-2000
Up to 5 gamma source irradiants can be kept in the storage container
Programmable control of the teleporter internal source
Plate handling, positioning, programmable control in fully automatic and manual mode.
Digital servos to move the resources and platform along the path of irradiation
Laser devices for radiation beam centering detection
Remote instrument for reading using video surveillance system
