Area Monitor "Fregat"

Field Monitor "Fregat" is designed to create a simple and inexpensive radiation system in nuclear medicine departments, radionuclide storage areas, facilities such as PET centers, calibration laboratories.

Small-scale automatic radiation monitoring systems with "Fregat" components with audible and visual alarms are ideal for meeting regulatory radiation safety requirements.

Field Monitor "Fregat" requires almost no setting; It is simple and useful during assembly and operation.

Details

AT-03 Calibration Stand

Working Principle

The calibration stand allows the movement of X-ray beams at a certain working distance using the standard and calibrated equipment positioning system on the desktop.

Using the stand axis measuring rods and laser systems, aligns the coordinates to the teleporter center and the X-ray beam according to the alignment results.

The management functions of the stand are carried out by a portable control panel and software.

Indication of calibrated devices on scales, video surveillance system is used for remote reading.

Application

* Metrological assurance of the X-ray dosimeter,

* Application in reference and calibration dosimetric setups for X-Ray

* Metrology laboratories to verify dosimetric equipment

* Second standard dosimeter laboratory (SSDL)

Details

AT1117M Radiation Monitor

The radiation monitor is equipped with different external smart probes for various applications, it can be used for operation and indication purposes either as a handheld PC or desktop computer for the Processing unit (PU / PU2).

1) PU / PU2

The smart probe sends data to the LCD display processing unit via the communication cable connected to it.

PU and PU2 can be loaded into a computer through a more specialized application. There are recording and memory options for up to 99 measurement results.

If the level dose, dose rate, flux density, fluency and surface activity are exceeded, there is a sound and visual alarm of the threshold level. The operation algorithm provides measurement continuity and real-time statistical processing of measurement results. PU and PU2 units have integrated sensing modules that provide on-site dose and gamma radiation dose rate measurement.

2) Portable PC

Portable PC data transfer from the smart probe is facilitated by Bluetooth wireless technology (using an interface adapter) or cable (where wireless communication is restricted in environments). It offers a portable PC (no built-in detector in HPC) and advanced features. It can be used for almost all PU / PU2 functions:

GPS reference of geographic coordinates and time measurement results

Automatically record and store more than 10,000 measurements with GPS reference

Option to upload data to PC for further analysis and processing by professional GARM Software

Automatic and manual data transfer to a remote server.

3) Desktop computer

The smart probe connects to the PC via the RS232 interface.

Dedicated ATexch Software provides the following functions:

Display of measured dosimetric and radiometric values

Response when measured value thresholds are exceeded

Writing and reading pre-recorded measurements to the file

Message analysis and error indication by display in case of error conditions

Multiple instances of the program can be run when it is connected to different PC ports.

Application

Radiation protective measures in nuclear disasters

Radiation monitoring during decontamination processes

Radioecology

Sanitary and Epidemiological Supervision

Nuclear industry

Emergency rescue service

Civil protection

Research activities

Customs inspection

Search X-Ray device

Features

Multiple functions

High precision and wide measuring range

Fast detection of changes in radiation level

Suitable for X-ray, gamma, alpha, beta and neutron and radiation sources

LED fixing system integrated in scintillation detection unit

Internal Geiger-Muller count tubes background compensation

Sound and LED alarm

Measurements can be obtained with a telescopic arm of 3 or 1.7 meters.

Details

AT1117M Portable Radiation Monitor

WORKING PRINCIPLE

The principle of operation is based on a highly sensible scintillation measurement method with a lead-filled plastic detector of Ø50?40 mm size. The BDKG-24 Smart probe sends data to the PU2 Processing unit displayed on a large LCD screen. The operator can save the measurement results manually.

The operation algorithm provides measurement continuity and real-time statistical processing of measurement results.

APPLICATION

* Radiation monitoring of the environment

* Monitoring the radiation environment of nuclear power plants and facilities

* Radiation control of buildings adjacent to X-ray and gamma-ray units

FEATURES

High sensitivity

* Fast response to changes in the radiation environment

* Wide radiation dose rate measurement

* Wide energy range

* Excellent anisotropy in the full energy range

* Integrated stability and continuous performance monitoring systems

* When the sound and visual alarm of the threshold level in advance are exceeded

* Operation in harsh weather conditions

Details

UZS-01D Universal Reader

Automation monitoring of radiation exposure to employees using DVS-02D and DKG-05D dosimeters during planned and unplanned radiation procedures.

Features:

Floor and desktop assembly;

touch screen and software "UZS-01D" optimized for it;

reminder and audible alarm on reader status;

Automatic control of data exchange with the reader.

"UZS-01D" software provides:

collection, processing, storage and dosimeter display of current information;

maintain a database of relevant information, including dosimeter and status, dosimeter users, and dose received.

Details

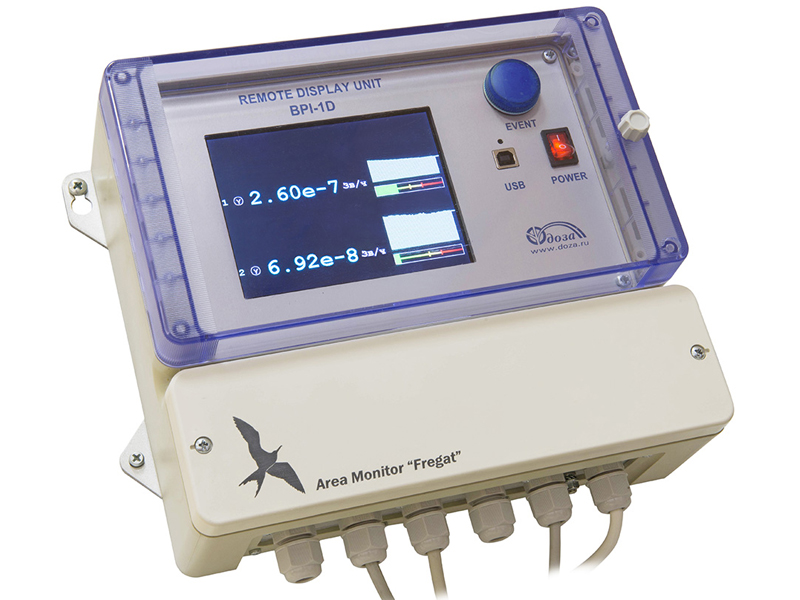

Local display BPI-1D

Display external measurement devices of the monitored parameters received values

Goal

* On-board information panel collection, processing and display of values of monitored parameters

* Comparison of thresholds and values of monitored parameters

* Transfer of values of parameters monitored to communication channels

* Alarm generation in case of operation of external alarm devices, including exceeding predetermined threshold

Details

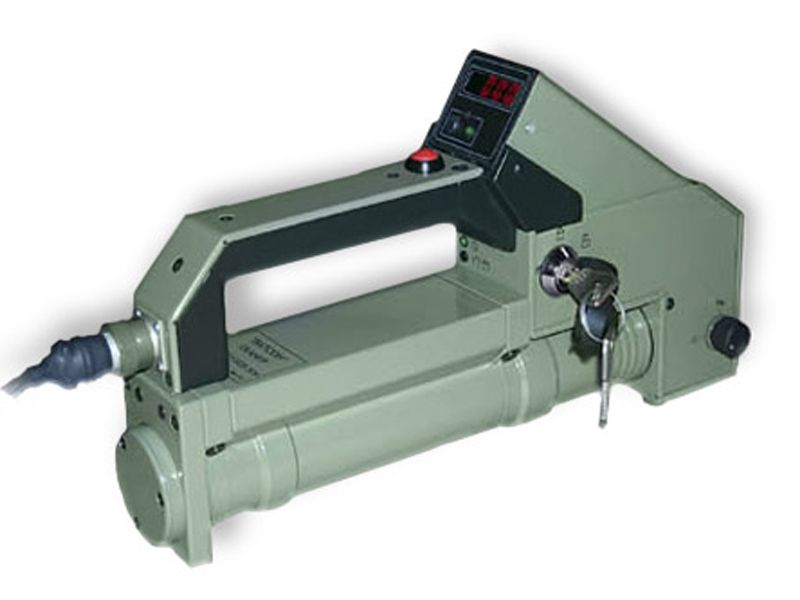

Watson Cavities Embedded Hand X-RAY scanner

Search for fugitive weapons and drugs with the x-ray scanner of embedded cavities and to determine where to hide them in the rooms.

Application:

Customs and Border Control, Security

Details

Remote display unit

Details

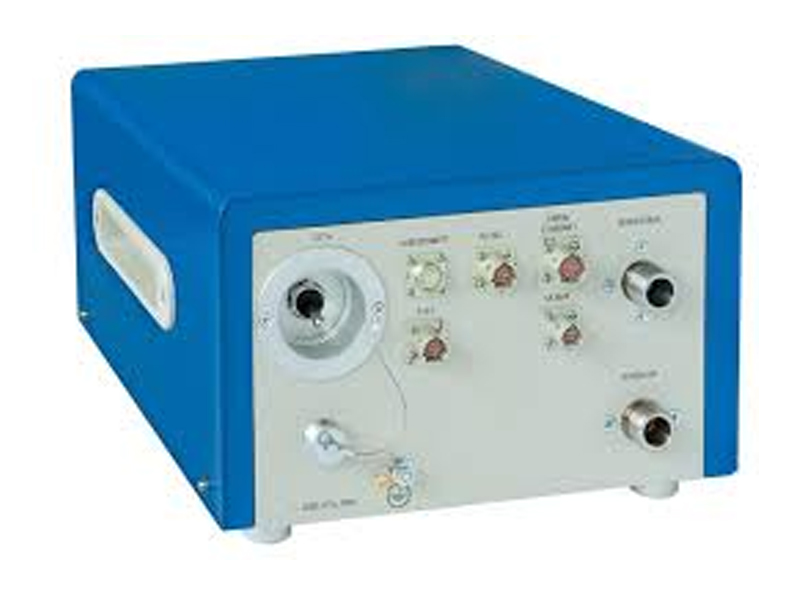

UDGB-01 H-3 C-14 Soygas Monitor

Continuous automatic monitoring of beta-emitting radioactive gases containing tritium and carbon-14 concentrations in workplaces and ventilation ducts and heaps of air.

Audio and visual alarm signals that exceed preset thresholds

Monitoring of noble gas activity in gaseous wastes and ventilation air for accident and post-accident conditions

Physical properties

Detectors - stainless steel ionization chambers

Air flow: 10 ÷ 100 lt / min

Working temperature range: minus 10 ÷ 50 ° ?

ion chambers volumes:

UDGB-01T, UDGB-01T1: 10.0 liters

UDGB-01T2: 0.1 liter

Measuring range (Kr-85):

UDGB-01T, UDGB-01T1: 1.0 · 10 4 ,0 5.0 · 10 9 Bq / m 3

UDGB-01T2: 10 9 ÷ 5.0 · 10 14 Bq / m 3

Measuring range (H-3):

UDGB-01T, UDGB-01T1: 5.0 · 10 4 ,0 5.0 · 10 9 Bq / m 3

UDGB-01T2: 5.0 · 10 9 ÷ 5.0 · 10 14 Bq / m 3

Energy range:

3 MeV ÷ 5 keV

Electrical properties

Power supply: 100 ÷ 250 V, 47 ÷ 440 Hz

Interfaces: RS-232, 2x RS-485, Ethernet

Programmable relay output (SPDT relay)

Analog output 4 ÷ 20 mA (optional)

mechanical properties

Protection index: IP 23

Paint: decontaminated

Overall dimensions, weight:

UDGB-01T: 381 x 343 x 716 mm, 30 kg

UDGB-01T1: 269 x 315 x 173 mm, 12.5 kg

Ionization chamber 10.0 liters: Ø 262 × 600 × 240 mm, 6 kg

UDGB - 01T2: 381 x 343 x 716 mm, 27 kg

alarm:

Sound alarm: 1 m 80 ÷ 100 dBA from distance

Visual alarm: red, green, yellow

Connecting the external alarm unit "BAS" type

versions:

UDGB-01T - 10.0 liters from built-in ionization chamber

0.1 liter from built-in ionization chamber - UDGB-01T2

With 10.0 liters from remote ionization chamber - UDGB-01T1

Details

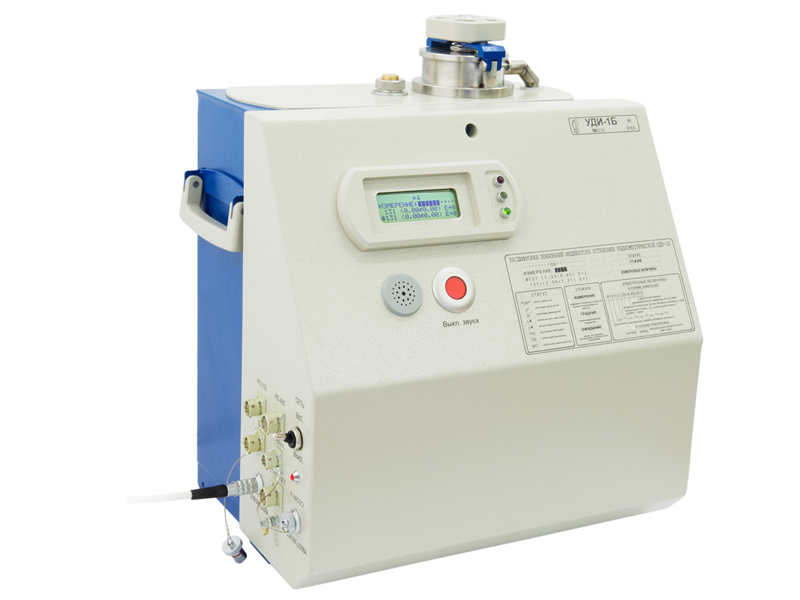

UDI-1B Iodine Monitor

?ontinuous automatic monitoring radioiodine concentration in workplaces and ventilation ducts and heaps of air.

Measuring volumetric activity of radionuclides in air I-131, I-132, I-133, I-135

on line gamma spectrometer

Gamma background compensation

Performance through the Am-241 control source implanted into the self-test detector

Audio and visual alarm signals that exceed preset thresholds

Periodic calibration through standard source

Physical properties

Scintillation detectors CsI (Tl) (2: for background compensation measurement and)

Cartridge: activated charcoal

Analog output 4-20 mA (optional)

Measuring range:

3.7 ÷ 3.7 · 10 6 Bq / m 3

Energy range:

÷ 3000 150

Air flow: 40 ÷ 60 l / min

Working temperature range: minus 10 ÷ 50 ° ?

Details

UIM2-2D Two Channel Count Rate Meter

UIM2-2D offers solutions for different radiation protection problems, including alpha and beta contaminated rate, using gamma and neutron measuring channels. The choice of detectors depends on certain applications.

Goal:

Measurement of average count rates for two measuring channels;

Alarm signals for preset threshold

Warning when threshold is exceeded on external signal or execution devices

Details

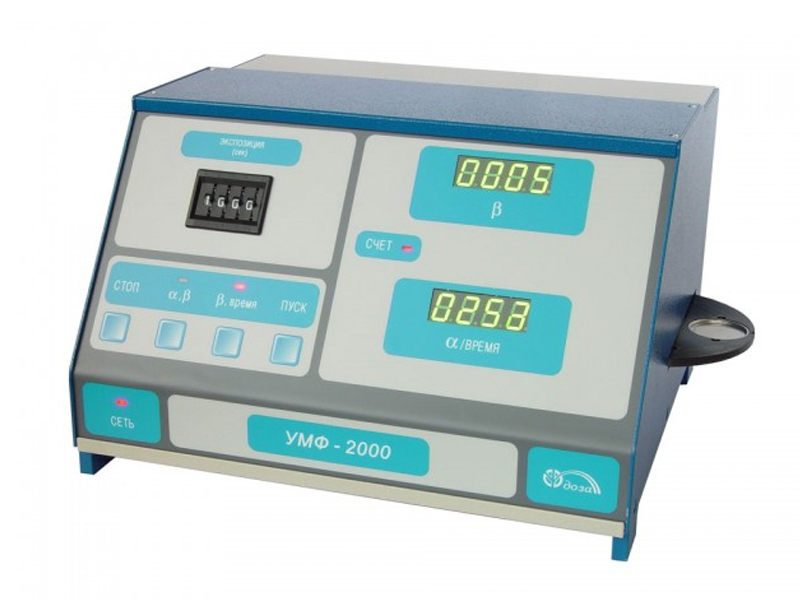

Alpha-Beta Radiometer for UMF-2000 Low Level Efficiency Measurements

Low background alpha - beta radiometer with silicon detector. Radiometer is used for low level alpha - beta counting. It is recommended for the measurement of total alpha and beta effectiveness in natural drinking water.

Goal:

Measurement of gross activity of alpha-emitting radionuclides in thick and thin samples;

measuring efficacy beta-emitting filters; radionuclides in food, soil, water samples, as well as samples prepared from selective radiochemical extract;

Measuring the effectiveness of alpha-emitting radionuclides in samples prepared by selective radiochemical extraction (relative procedures are required).

Features:

sample alpha / beta activities measured simultaneously;

Available options for the surface area of ??the installed detector: 500 or 1000 mm 2;

gas discharge detectors (GM cylinders) using effective anti-coincidence background removal;

Background gamma radiation passive lead protection;

protection of power line disorders;

For separate counting of pulses from the timer and two channel detector (alpha, beta);

Spectroscopy appeared (after the preamplifier);

Connection to computer via USB or RS-232;

Basic software for UMF-2000;

Po-210 and Pb-210 measurement in soil and water samples;

SpectraDec software expands the functionality of UMF-2000 with U, Th, Po, Pu alpha-spectrometric measurements (after preparation of samples using radiochemical techniques) Am isotopes.

Basic complete set:

radiometer "UMF-2000";

The software (for Windows) offers a convenient way to work with the UMF-2000 using the "UMF-2000" personal computer.

USB cable;

planchet - 10 products;

check the source;

passport and user manual;

primary calibration certificate.

Details

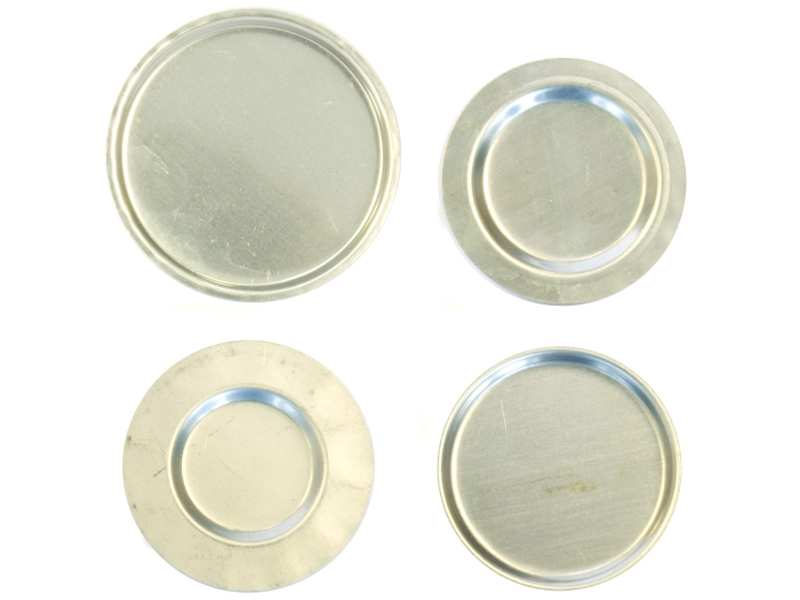

UMF-2000 Money Sign

There are four types of alpha / beta radiometers of UMF-2000 money boards.

Planchet 14 cm 2

FVKM.725212.003

Detector 1000mm2 alpha / beta radiometer UMF-2000 coin plates for low level efficacy measurements. In accordance with the technique of measuring the total probe alpha-and-beta activity of the water probe using the alpha-beta-radiometer UMF-2000 used

Planchet 2,5 cm 2

FVKM.725212.006

For low level Activity measurements with detector, Alpha / beta radiometer UMF-2000 coin plates 1000 mm 2 or 450 mm 2 measurements, for counting samples obtained with a balance weight selective radiochemical extraction method up to 100 mg

Planchet 7 cm 2

FVKM .725212.002

2 for alpha / beta radiometer UMF-2000 coin plates for low level effectiveness measurements with detector 450 mm. In accordance with the technique of measuring the total probe alpha-and-beta activity of the water probe using the alpha-beta-radiometer UMF-2000 used

Planchet 4 cm- 2

FVKM .725212.001

For low level Activity measurements with detector, Alpha / beta radiometer UMF-2000 coin plates 1000 mm 2 or 450 mm 2 measurements, for counting samples obtained with a balance weight selective radiochemical extraction method up to 200 mg

Details

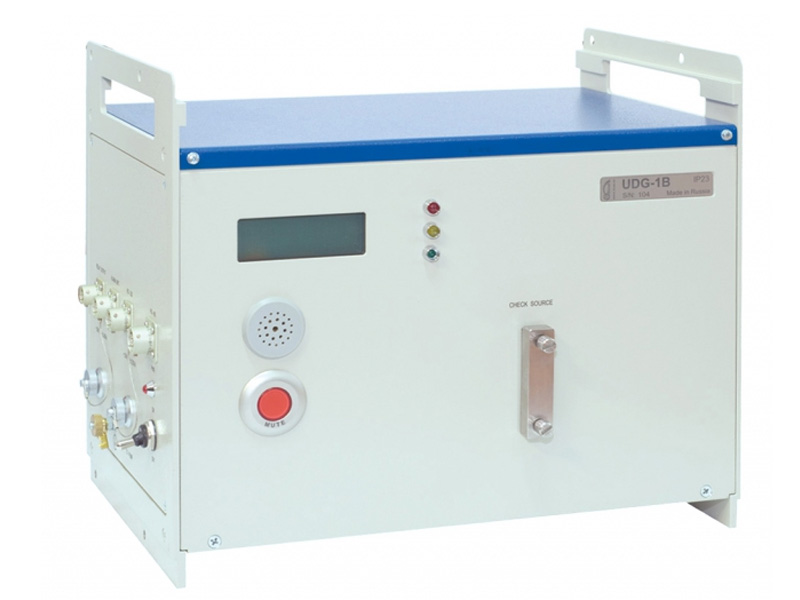

UDG-1B Soygaz Monitor

Continuous automatic monitoring of concentration of radioactive gases emitting beta in the working air and in ventilation ducts and stacks air.

Gamma background compensation

Audio and visual alarm signals that exceed preset thresholds

Periodic calibration through standard beta source

Physical Properties

Silicone detectors (2: for background compensation measurement and)

Air flow: 10 ÷ 100 lt / min

Working temperature range: minus 10 ÷ 50 ° ?

Measuring range:

10 4 ÷ 6 · 10 9 Bq / m 3

Energy range:

0.08 ÷ 3.0 MeV

Details

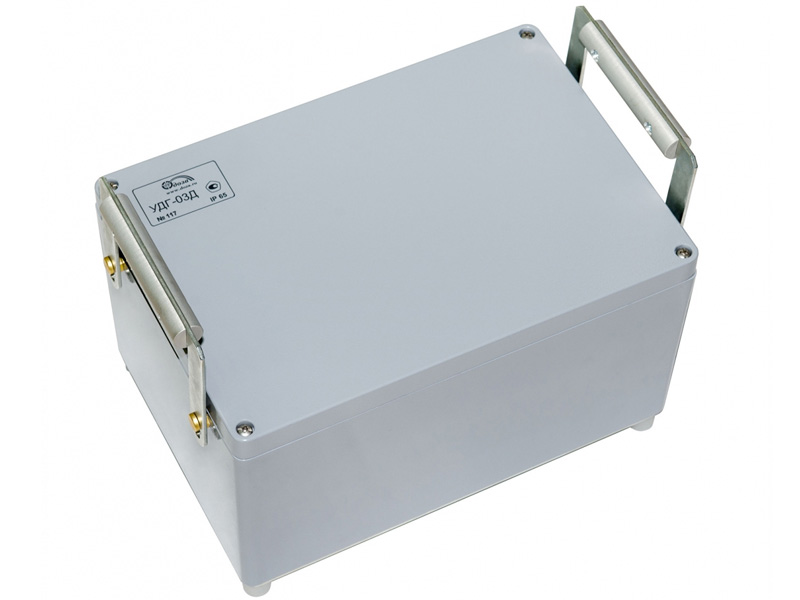

UDG-03D Soygas Monitor

Measuring the volumetric activity of beta-emitting radioactive gas (argon, krypton, xenon), adapted for the measurement of rapidly changing voice activity in various technological processes.

Gamma background compensation

Audio and visual alarm signals that exceed preset thresholds

Periodic calibration through standard beta source

Physical Properties

Silicon detector (measurement and background rejection) 2 pieces

Air flow: 10 ÷ 100 lt / min

Working temperature range minus 10 ÷ 50 ° ?

Measuring range:

10 4 ÷ 3.7 · 10 10 Bq / m 3

Energy range:

÷ 3000 60

Electrical properties

Power supply: 12.0 V

Interface: RS-485

Programmable relay output (SPDT relay)

Analog output 4 ÷ 20 mA (optional)

Mechanical properties

Protection index IP 65

Decontaminated Paint

Overall dimensions, weight:

376 × 258 × 230 mm, 23 kg

Details

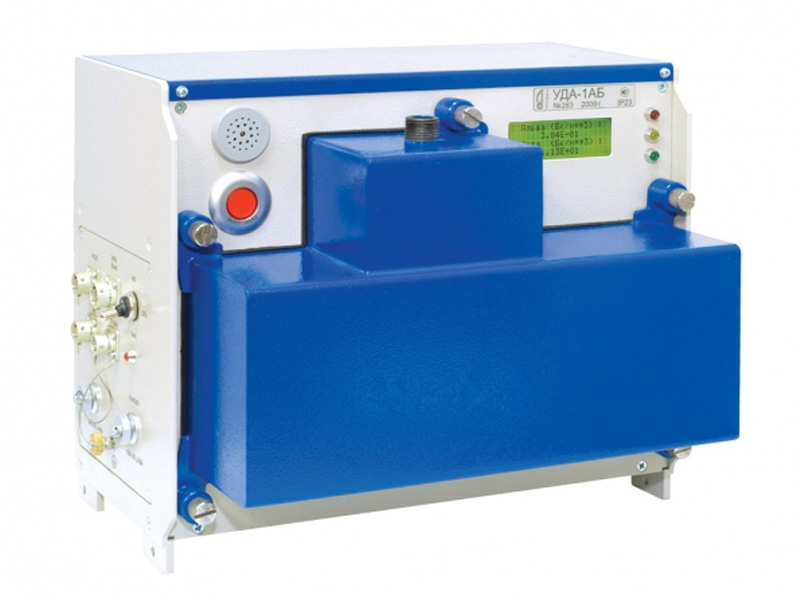

UDA-1AB Particle Monitor

Continuous automatic monitoring of alpha and beta radioactive aerosol concentration in working air and ventilation ducts and stacks air.

Radon, Toron pups and gamma background compensation

on line alpha spectrometer

Audio and visual alarm signals that exceed preset thresholds

When operating the electromagnetic valves control with the outside air sampling line

control of the pump unit

Periodic calibration through standard beta- and alpha-sources

Physical Properties

Silicon spectrometric detector (2 pieces: Measurement and background compensation)

Filter band types:

LFAS

FSLW (optional)

Tape consumption (continuous operation): 10 m / 50 days

Air flow: 10 ÷ 60 l / min Operating temperature range: minus 10 ÷ 50 ° ?

Measuring range:

Alpha: 10 -2 2 ÷10 10 Bq / m 3

Beta: 10 -1 ÷ 10 6 Bq / m 3

Energy range:

Alpha: 3.0 ÷ 9.0 MeV

Beta: 0.05 ÷ 3.0 MeV

Electrical Properties

Power supply: 100 ÷ 250 V, 47 ÷ 440 Hz

Interfaces: RS-232, RS-485, Ethernet

programmable relay output (SPDT relay)

Analog output 4 ÷ 20 mA (optional)

Mechanical Properties

Protection index: IP 65

Paint: decontaminated

Details

SRPS-05D Gamma Monitor

Ideal for radiation monitoring in nuclear facilities. The monitor gives audible and visual alarms when the preset threshold level is exceeded.

Goal:

Gamma dose measurement for H * (10)

Enabling external signal and execution devices

Audible and visual alarm when the preset threshold level is exceeded

Details

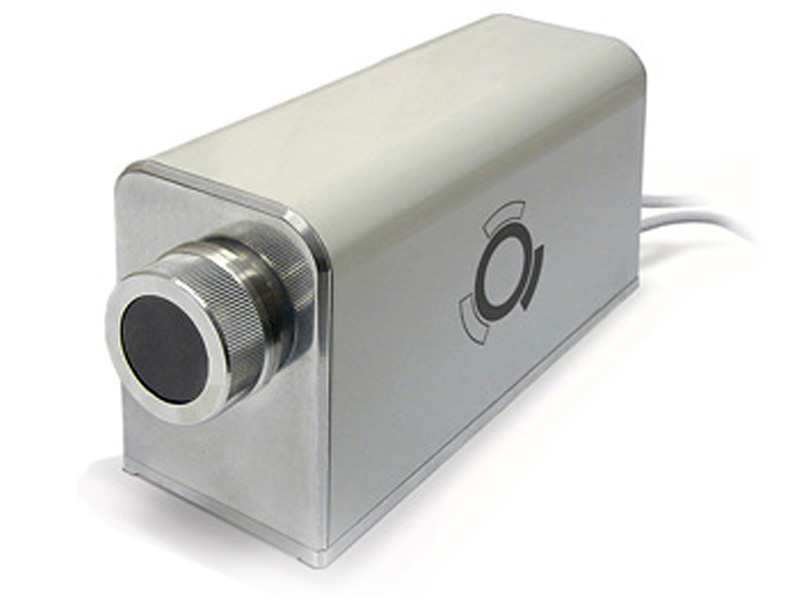

SGS-4 Stable Scintillation Gamma-Radiation Spectrometer

High-precision gamma-resonance measurements based on using an ultra-thin inorganic scintillation detector;

· Viewing and storing a PC spectra;

PC-controlled distinctive levels;

High measurement efficiency achieved by a highly efficient digital processing system of input spectral signals;

Excellent stability on measurement repeatability assured by time and digital signal processing stabilizer system;

Collection of Mössbauer spectra.

Stabilized Scintillation gamma radiation Spectrometer is designed to record 3 to 30 keV X-ray and gamma radiation and accumulate Mössbauer spectra with a single channel differential amplitude discriminator (SGS-4).

Discrimination levels are controlled via the PC serial RS-232 interface. After the parameter setting, the device can be connected to the PC and independent operation.

The Win XP - style Graphical User Interface software allows device operation and spectra to be obtained from the standard PC.

Details

RZBA-04-04M Whole Body Counter

Multichannel counter with audible and light alarms if preset threshold levels for beta-emitting radionuclides are exceeded. If the monitor indicator (signal) measurement values ??are below the contamination threshold in all channels, it gives a "CLEAN" signal. Available models differ in the presence of optional remote detector units for alpha and beta radiation with the number of tracked parts of the body.

Goal:

Hands, feet (shoes) and personal / protective clothing monitoring of alpha and beta contamination

Alarm signals for preset threshold level.

Features:

Warning lamp "READY" (ready for measurement);

Visible and audible alarms "COMMUNICATION" (presence of contamination exceeding the threshold) and "CLEAN" (no contamination);

Separate threshold for each measuring channel;

Automatic compensation for background gamma radiation and contamination of detector units;

Indication of the level of contamination for each detector unit that can be adjusted from the keyboard;

Threshold settings can be entered from the keyboard;

Automatic self-test feature for detectors and measuring channels;

Reminder and display of dirty part of the body on the panel with the image;

Network capability via communication interfaces RS-485 and RS-232;

It is a system equipped with the required number of different models, sensors head monitoring and measurement channels (15 to 20) of the detectors for placement, optional remote detector units and the dorsal side monitoring of the hands.

Details

RZB-05D Hand-Foot Contamination Monitor

RZB-05D includes interchangeable detector units based on commonly used Geiger-Muller counters.

Goal:

Alpha, beta, gamma contamination monitoring for hands, feet and personal protective clothing

Alarm signal if preset threshold level is exceeded

Features:

Floor (RZB-05D-01, RZB-05D-02) and desktop (RZB-05D-03, RZB-05D-04) installation;

Optional connection of alpha detector unit (RZB-05D-01, RZB-05D-03);

Access key for calibration and service;

Numerical and color (red: "dirty", green: "clean") indication of measurement results;

Proximity sensor for LED-based hand (foot) measurement start;

Fine tuning with alarm memory (thresholds) throughout the measurement range;

Automatic compensation for background gamma radiation and contamination of detector units;

Warning signal in predetermined levels of background radiation or detector excessive pollution;

Internal memory for each detector unit to store individual calibration parameters;

Detector failure warnings;

Detector unit interchangeability.

Details

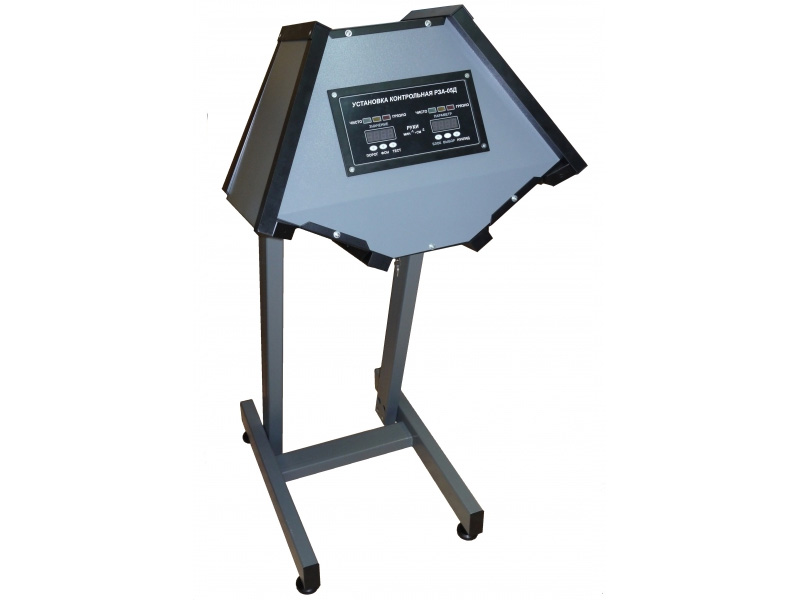

RZA-05D Alpha Hand Contamination Monitor

The high sensitivity system is designed to determine contamination of the hands with alpha emitting radionuclides. The system is suitable for use in plants working with alpha-active substances (substances), contamination portals, sanitary environments.

Goal:

Monitoring of hands contamination with alpha emitting radionuclides. Alarm signals when the predetermined threshold is exceeded.

Features:

Numerical indication of measurement (monitoring) results;

Visual and audible alarm signals when preset thresholds are exceeded;

Access key for calibration and service operations;

LED based hand (foot) proximity sensor for measurement initiation;

Fine tuning with alarm memory (thresholds) throughout the measurement range;

Automatic compensation for background gamma radiation and contamination of detector units;

Warning signal if background radiation or detector excessive pollution is exceeded at predetermined levels;

With optional detector unit for modification monitoring RZA-05D-01.

Basic complete set:

Manual assembly;

BDZA-100B detector units - 2 pieces;

Support - 2 products;

Base;

User manual, passport;

Calibration (verification) document.

On request:

Alpha hand-foot contamination monitoring RZA-05D-01

Details

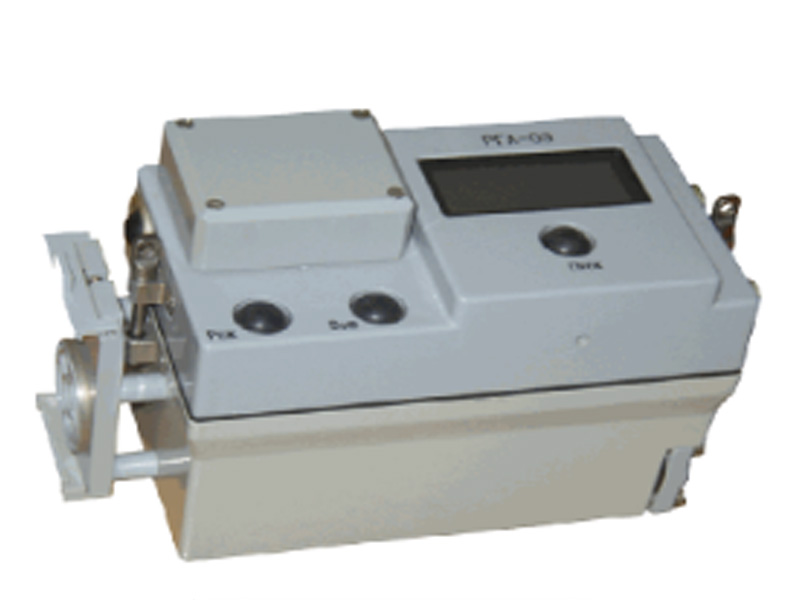

RGA-09m / RGA-09MSH Radiometer

RGA-09m / RGA-09MSH Radiometer (Explosion Proof)

RGA-09M radiometer special volume is designed for estimation measurement of natural radioactive aerosols activity (Radon-222 decomposition product), air radon and toron equivalent balance volume activity (Eeva). It is used in radiology departments, NFC, coal and metal mining enterprises, etc.

Goal:

Radon-222, Radon-220 Eeva (thoron), Radon-222 decay measuring the specific volume activity of the product Eeva.

Details

Radiation Monitoring Stand (RMS)

Goal:

Radiation Monitoring Stand (RMS) is designed for continuous monitoring of radiation parameters in buildings and technological systems in nuclear facilities. It can also be used as a low-level building element of automation radiation monitoring systems in nuclear power plants and other nuclear facilities, including RMS acquisition, processing, use and storage of radioactive materials.

Features:

Volumetric activity measurement of alpha and beta emitting aerosols in monitored facilities

Volumetric activity measurement of beta emitting gases in monitored facilities

Primary processing, storage and measurement related data transmission to information channel based on Ethernet IEEE 802.3 interface (TCP / IP protocol)

Transfer of the necessary data to the place where it is installed via technological channels connected to the RS-232 equipment interface

Audible and light alarm when pre-determined limits for threshold levels of monitored parameters are exceeded

Reading the received data directly on LCD screens

Details

Radiation Monitoring System - Pelikan

RMS "Pelikan" is a complex creation of independent units (designed for the measurement of different parameters) within the common information network. The RMS network is built using Ethernet IEEE 802.3 technology, these clients host measuring devices and workstations. The network includes two servers, or alternatively, it may not have any.

RMS ensures the performance of all dials required for repair or calibration of hot mode measurement without interrupting normal network operation.

Details

Radiation Panel RADG 2500

Area Monitors

Dosimeters

Radiation Sources

Measuring and Calibration

Portable Spectrometers
